• mini dry metal bath
  • Mini-100T
  • Temperature control range: room temperature +5℃ to 100℃ (circular)
  • Mini-100T
  • mini dry metal bath
  • Temperature control range: room temperature +5℃ to 100℃ (circular)

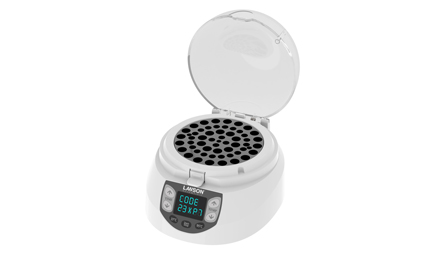

Mini-100T round mini dry metal bath adopts microcomputer control and uses high-purity aluminum material as the thermal medium to replace traditional water bath devices. It is characterized by convenient use, wide temperature control range, and high precision. It can be widely used in various biochemical sample constant temperature incubation processes such as sample preservation and reaction, pre-denaturation of DNA amplification and electrophoresis, serum coagulation, etc. One-click setting of 37℃ and 95℃ is available.
Product Features
• Fast heating rate, uniform heating, accurate temperature control, high stability, and low energy consumption.
• Built-in temperature deviation calibration function, automatic fault detection, and buzzer alarm function.
• Built-in over-temperature protection device for safer and more reliable use, and longer machine service life.
• The product is designed to be compact and tight, with a small space occupation range, and a transparent machine cover to reduce experimental errors.
• Can be set for continuous operation without time limit.


Technical Specifications
Model: Mini-100T
Temperature Control Range: Ambient temperature +5℃ to 100℃
Timing Range: 1 to 99h59min/∞
Temperature Control Accuracy: ≤±0.3℃ (@37℃)
Temperature Display Accuracy: 0.1℃
Heating Time: ≤15min (20℃ to 100℃)
Temperature Uniformity: ≤±0.5℃ (conventional)
≤±0.3℃ (@37℃)
Number of Modules: 1
Power Supply Voltage: AC110 or 220V/50-60HZ
Maximum Power: 150W
Product Size: 160*190*130 mm
Product Weight: 1.5 kg

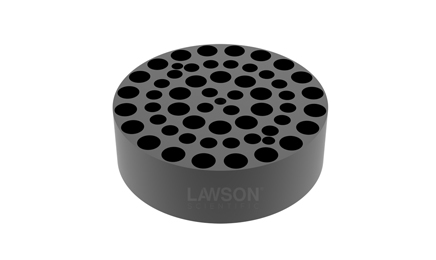

Module Model Selection
Model Test Tube Diameter Test Tube Specification Module Size Bottom Shape of Hole
MY-A 6.1mm 0.2ml*96 φ104.5*32mm Cone Bottom
MY-B 8mm 0.5ml*59 φ104.5*32mm Cone Bottom
MY-C 10.8mm 1.5ml*39 φ104.5*32mm Cone Bottom
MY-D 10.8mm 2.0ml*39 φ104.5*32mm Round Bottom
MY-E 13.5mm 5.0ml*18 φ104.5*32mm Round Bottom
MY-F 8mm/10.8mmmm 0.5ml*24+1.5ml*30 φ104.5*32mm Cone Bottom
MY-G 6.5mm 6mm*59 φ104.5*32mm Round Bottom
MY-X Customizable for Other Specifications / / /




Single Page - Color Page
Name: Author: Action:
mini dry metal bath   Mini-100T dry_bath Download







Product List
Mini-100T Unit
Host Machine Unit
Metal module piece
Special Screwdriver (used for disassembling the mo Piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
1
1
1
